3D Infrared Face Mask Programmes: Red, Blue, Yellow and Invisible NIR Explained

The 3D Infrared Face Mask has three programmes, not five separate colour settings. Each programme combines one visible colour with two near-infrared wavelengths: 830 nm and 1072 nm. Select red, blue or yellow, and the same pair of invisible near-infrared channels remains part of the described programme.

That distinction explains why a product can list five wavelengths while offering only three programme choices. It also explains why the light you can see does not show you everything listed as running inside the mask.

This guide decodes the current model's programme table and the practical choices around it. For the broader background, our infrared light therapy guide for skin explains where infrared fits within light-based skincare. Here, keep the focus on the 3D mask rather than transferring the same menu to every LED device.

Read the Three Programmes in One Table

The current detailed specification of the VanqHeal 3D Infrared Face Mask describes the following combinations. The programme names are the brand's labels, not promises of a particular result for an individual user.



Each row describes one programme. There is no separate 830 nm-only or 1072 nm-only mode established by this table. Nor does it describe all five wavelengths operating together in every selection.

Think of the table as a menu of combinations. The visible ingredient changes between rows; the two listed near-infrared components stay in each row. That is more useful than counting the number of colours in a photograph.

The description was checked on 19 October 2026. Some older blocks on the product page still refer to different mode counts and treatment times. This explanation follows the model-specific three-programme table; obtain matching instructions for the controller supplied with your order.

Understand What “nm” Tells You

Nanometres, written as nm, identify wavelength. In this menu, 633 nm names the red component; it is not the length of a session or an intensity setting. The same distinction applies to 460, 590, 830 and 1072 nm.

A wavelength label helps identify the light channel. It does not, by itself, tell you how much light reaches a particular facial area. Fit, the device's output and the complete operating arrangement are different pieces of information.

You do not need to calculate a dose to read the menu. Start by matching the programme and model. Treat the manufacturer's timing, intensity and eye instructions as separate controls rather than trying to derive them from the wavelength number.

This also prevents a common comparison mistake: reading a larger wavelength number as a stronger setting. Moving from 633 to 1072 nm is not like turning a volume control up. They identify different parts of the programme, not points on a universal power scale.

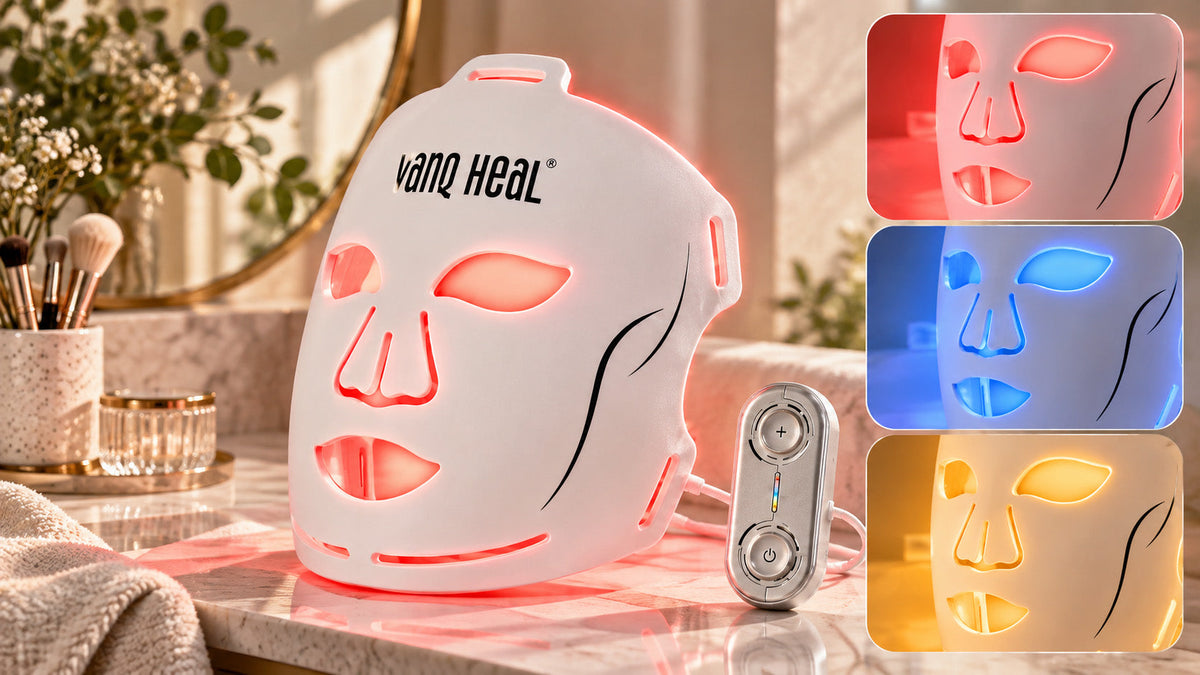

Invisible NIR Does Not Add Another Visible Colour

Near-infrared is outside ordinary human vision. You therefore should not expect two additional colours to appear when the described 830 nm and 1072 nm channels operate alongside red, blue or yellow.

For example, selecting the red programme may leave you seeing red light. That appearance is consistent with a programme that also includes invisible channels. It does not let your eyes verify their wavelength or output.

Keep photographs in their proper role. A photograph can show the mask's shape, its illuminated visible colour and where the controller is connected. Camera exposure, filters and sensor response influence what appears in the image. A brighter-looking photograph is not a reliable output comparison between devices.

A phone camera is not a calibrated check of this mask's two NIR channels. If a unit appears to malfunction, follow its troubleshooting instructions and contact support with the model and controller details. Do not remove eye protection, look closely into the LEDs or keep adding cycles to try to make invisible light visible.

Separate Five Wavelengths, Three Programmes and Three Intensities

These are three different counts. Keeping them separate makes the controls easier to understand.

Five wavelengths describes the full listed set across the device: three visible wavelengths and two near-infrared wavelengths. Three programmes describes the combinations shown in the table. Three intensity levels describes another selectable control within the model's operation.

The numbers do not need to match. They are not a scorecard in which the largest number identifies the best device. A seven-colour mask may organise its menu differently, while this model organises its listed channels into three combinations.

The product also lists 100 LED beads containing 400 light-emitting chips. That is a construction description, not 400 programme choices. The count cannot tell you whether every facial area receives the same exposure or whether a second mask with fewer chips performs worse.

When a comparison page mixes these counts in one column, rewrite the question. Ask separately: which wavelengths are listed, which run together, what controls can the user select, and what evidence supports any claimed outcome? Clear questions prevent a complicated feature list from becoming a confusing buying argument.

Read Programme Names Without Turning Them into Diagnoses

Firming, Blemish Care and Radiance make the menu easier to navigate, but a programme name is not a personal treatment plan. Start with the intended use described for the model, not a diagnosis inferred from the colour of a blemish or a close-up photograph.

The American Academy of Dermatology's home red-light guidance discusses possible cosmetic uses and the variability of devices and results. It recommends professional advice about suitability and following the exact device's directions. General light-therapy research should not be presented as proof that this particular programme produces a promised change.

When you are receiving treatment, using light-sensitising medication or managing a skin condition, take the product information to the treating professional. Ask how the proposed device fits your existing care. Switching colours is not a way to work around an unsuitable or poorly understood routine.

The practical goal is a programme you understand and can use as directed. You do not have to complete the menu as though each colour were a compulsory stage of one session.

Plan the Controls Before Switching the Light On

Set up the actual cable-connected system

The 3D mask connects to a rechargeable controller by cable while in use. Charge the controller beforehand and disconnect it from charging for the session. Keep the required mask-to-controller connection in place; this model is not operated like a completely cordless mask with an integrated control.

Arrange the controller where you can reach it without tension on the cable. Prepare the straps and the specified eye protectors together. The current product directions call for clean, dry skin, the eye protectors in place and eyes closed during facial use.

These preparations are part of the session, even if the light-on period is brief. A suitable chair and an accessible control are more useful than trying to turn skincare time into several other activities.

Keep intensity and timing with the instructions

The detailed product description lists three intensity levels and an automatic ten-minute cycle. Its starting guidance uses the lowest intensity. Follow the matching instructions and suitability advice rather than treating the highest setting as the goal.

There is no reason to repeat the cycle simply because another colour remains unexplored. Also avoid borrowing the timer-reset behaviour of Wireless Plus or another mask. Similar-looking buttons do not establish the same control logic.

If the controller supplied with your product behaves differently from the instructions, ask support before improvising. Record the discrepancy once; do not investigate it by repeatedly exposing the skin while changing settings.

Keep a Small Programme Reference with the Kit

A useful reference card records the model and the instructions you are following. It can be brief enough to sit beside the storage bag rather than become another complicated skincare tracker.



Keep usage notes separate from any record of appearance. A completed programme is an operating record; it is not evidence that collagen changed or a blemish improved because of that session. When comparing photographs, also note other skincare or professional treatments that changed.

If someone in the household owns another light device, give each set its own reference. The same colour name can refer to a different programme in another product.

Keep the 3D Mask Separate from the New Face & Neck Set

The LED Light Therapy Mask for Face & Neck Set is a different system with a separate neck component. Its main programme table describes 850 nm NIR combinations, rather than the 3D mask's 830 nm and 1072 nm pair.

That set's page currently contains a conflicting yellow-mode block, so confirm its supplied-version table rather than importing this article's numbers. “Both have red, blue and yellow” is not enough to share instructions between them.

The 3D mask is face-only. Its programme menu does not create neck coverage, a cooling attachment or permission to place it elsewhere. Keep the model, area, connections and controls together whenever you compare equipment.

Remember the simple pattern: one visible choice, two listed invisible NIR channels, one instructed programme at a time. Use the table to understand the product. Use the matching manual and appropriate advice to decide how it fits your routine.

Frequently Asked Questions

Does the 3D Infrared Face Mask have three modes or five?

The current model-specific description has three programmes using five wavelengths across the device. Each programme pairs one visible wavelength with 830 nm and 1072 nm NIR. Five wavelengths does not mean five separate selectable modes.

Is near-infrared included in the blue and yellow programmes?

Yes, according to the current three-programme table. Both 830 nm and 1072 nm are listed with blue, yellow and red. They are not exclusive to the red programme in that description.

Why can I only see the selected red, blue or yellow colour?

The two near-infrared wavelengths are invisible to ordinary human vision. The visible colour therefore does not show every listed channel. Neither eyesight nor the brightness of a photograph verifies the exact NIR output.

Can I select an NIR-only programme?

The current table does not establish a separate NIR-only programme. It describes three combinations with a visible component. Use the supplied controller instructions rather than assuming an additional mode exists.

Should I use all three programmes in one sitting?

Do not treat the menu as three compulsory stages. Follow the model's instructed routine and any relevant professional advice. Repeating automatic cycles or changing colours to extend exposure is not a supported shortcut to a result.

Is the highest intensity the best setting for wrinkles?

The intensity label does not establish that. The current product directions start at the lowest setting, and suitability and timing still matter. Follow the matching instructions rather than aiming for the strongest sensation or brightest appearance.

Can I use this programme table for the Face & Neck Set?

No. That is a different product with separate neck equipment and a different main programme table. Confirm its current instructions, especially where its web copy conflicts. Keep each model's wavelengths and controls separate.
