A television remote sends an invisible signal. A motion sensor notices someone entering a room. A thermal camera turns incoming radiation into a colourful picture. All three can involve infrared light, but the light has a different role in each system.
Infrared light is electromagnetic radiation beyond the red end of the visible spectrum. Our eyes cannot see it. To understand an infrared device, start with two questions: what emits the radiation, and what detects it? Then check what the resulting signal is used for. This guide follows those questions through everyday examples, with a separate look at documented scalp, body-care and panel devices.
Sources and Detectors Are Different
A source emits radiation; a detector responds to radiation reaching it. A complete system may contain both, but those roles are worth keeping separate. In an infrared remote-control system, the handset sends a signal and the equipment's receiver picks it up. In thermal imaging, the objects being observed provide radiation for the camera to detect.
Infrared also exists without a purpose-built LED. Warm objects, including people, emit it. NASA's Infrared Waves overview explains natural thermal emission alongside familiar artificial sources. A lamp may emit visible and infrared radiation together, while an infrared LED is designed around a much narrower band. The word infrared therefore covers more than a particular beauty-device setting.
Think of a room containing a person, a remote, a motion-triggered light and a camera. You need to trace each system separately. The person can be the source that a passive motion sensor detects; the remote can be a source sending commands elsewhere. The room's visible light turning on is the sensor system's response, rather than a picture of the infrared it received.
This distinction gives you a useful starting point when reading product descriptions. Look for verbs such as emits, detects, measures or displays. They tell you what the equipment actually does before you consider wavelength figures or possible applications.
Everyday Examples With Clear Labels
A remote-control emitter sends a command
Vishay's TSAL6200 is a documented infrared-emitting diode. Its manufacturer datasheet identifies a typical peak wavelength of 940 nm and lists infrared remote-control units among its applications. It is a concrete component example, not an identification of the diode inside your own handset.
For a remote, the useful result is a received command. Pointing the handset towards the intended receiver helps the signal reach the right equipment. The fact that you cannot see the signal does not stop the receiver responding. Likewise, the visible colour of the diode's plastic casing does not tell you the colour or wavelength of its emission.
Some digital cameras can reveal a remote's emission, as NASA notes. That can illustrate the difference between human vision and a detector's response. A bright patch in the camera image, however, gives you no calibrated reading of wavelength or optical power. Keep this demonstration within its purpose: recognising an otherwise invisible signal, rather than measuring a skincare exposure.
A passive motion sensor receives changing radiation
Panasonic PaPIRs are passive infrared motion sensors used in lighting controls and other systems. Panasonic's explanation of PIR sensing describes a lens gathering radiation from a person and a sensing element responding to changes. Here the person supplies the infrared; the sensor is the receiver.
The output can tell another part of the system to switch a light on. It does not need to produce a thermal photograph to perform that job. Panasonic distinguishes these motion sensors from image sensors and describes using a PIR sensor to wake a separate camera.
Imagine a motion-controlled passage light. Seeing the lamp turn on tells you that the system has responded to a trigger. It does not show the incoming radiation's wavelength, identify the person or provide a temperature map. Those are different tasks, requiring suitable equipment. The sensor's own sensitivity and installation instructions determine how it should be used.
A thermal camera makes a display from detected radiation
The FLIR Cx series offers another documented example. Its thermal-image guidance describes temperature scales, colour palettes and several image modes. Some modes combine thermal information with visible-image details, so an apparently photographic outline need not come from the infrared detector alone.
Read the scale before reading the colours. The camera can adjust the displayed temperature span automatically, and users can change its palette. A red patch is a chosen representation of information, not visible red light travelling from the object to the camera. Comparing two screenshots needs consistent settings and measurement context.
FLIR also explains that reflective surfaces can show radiation from their surroundings. This matters when a shiny object looks surprisingly warm or cold. A thermal picture needs interpretation; its imaging function is detection, rather than light treatment of the photographed object.
Follow the Source, Path and Output
The diagram shows three different jobs. It is a concept illustration, not a measured exposure or a thermal scan. The unlit panel is an original appearance reference; the picture does not establish its wavelengths.
| System | What travels towards the receiver or target? | Useful output |
|---|---|---|
| Infrared remote | A signal from the handset's emitter | A command received by the intended equipment |
| Passive motion sensor | Changing radiation from objects in its detection area | A trigger for another system, such as a light |
| Thermal camera | Radiation reaching the imaging detector | An image interpreted using its scale and settings |
| Consumer LED device | Specified emission towards an intended area | An exposure that needs its own model instructions |
Try this reading exercise: imagine an advert showing a red LED device beside an orange thermal image. First identify what was photographed. Next ask which camera produced the image and whether its scale is shown. Then check whether the advert provides a separate wavelength specification for the device.
Those questions address different pieces of information. The thermal image may concern surface temperature, while the specification describes an emitted band. To connect them, you would need to know that the image involved the same device and operating conditions. An attractive combination of pictures cannot supply that missing connection.
You can use the same method outside beauty shopping. For a household sensor, ask whether you need a motion trigger, a temperature reading or an image. Choosing the desired output first makes the word infrared more useful: it becomes part of the specification rather than a promise that one tool performs every task.
Wavelength Numbers Need Their Units
Wavelength describes a wave's spatial interval. Near-infrared LED specifications commonly use nanometres, written nm; longer infrared ranges are often expressed in micrometres, written µm. One micrometre equals 1,000 nanometres.
For a simple conversion exercise, 850 nm equals 0.85 µm, while 10 µm equals 10,000 nm. These numbers occupy different positions on the spectrum even though both can be described as infrared. The conversion is arithmetic, not a claim that the two sources behave identically.
Also read what the number labels. An emitter's peak wavelength describes its output, whereas a detector's sensitivity range describes radiation it can receive. Putting the two figures side by side without those labels can confuse a source with a sensor.
A nominal LED wavelength is a starting point for reading a consumer specification. That number can guide the next question, but it is not a complete report of peak position, spectral width, output or performance at the treatment surface. Look for the operating mode and measurement conditions when a document goes on to make an output claim.
Where Documented Consumer Devices Fit
Scalp and body-care products belong in the emitter category when their documentation specifies infrared output. Their purpose differs from signalling, motion detection and thermal imaging. The following examples use VanqHeal listings checked on 13 October 2026; the wavelengths are manufacturer-listed values, not independent measurements.
| Documented example | Listed light information | Question the example helps you ask |
|---|---|---|
| Red Light Therapy Hat | 660 nm red and 850 nm infrared | Which instructions apply to the scalp device and its active mode? |

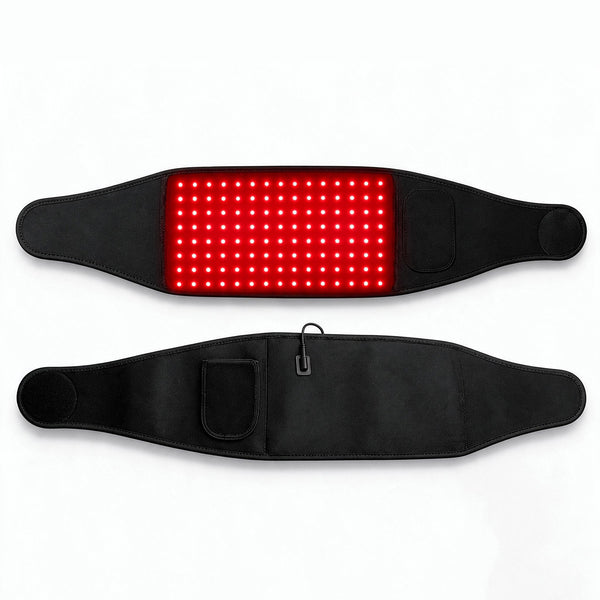

| Infrared Red Light Therapy Vibration Belt | 630 nm red and 850 nm infrared, alongside heat and vibration functions | Which function does a particular setting control? |
| 5-Colour LED Panel | An 850 nm infrared channel among its listed wavelengths | Which controller mode activates that channel? |
The belt is particularly useful for separating functions. Light emission, heating and vibration are different operations, even when one product combines them. Feeling warmth tells you about a sensation; it does not identify which light channel is active or measure its output.
A visible red mode or a colour count is equally insufficient to identify near-infrared. Check the exact product's documentation. This guide does not confirm NIR in either VanqHeal face mask or the 3-Colour Panel. Their appearance cannot fill that information gap.
For operating decisions, use the matching instructions. Do not lengthen an exposure to make invisible light feel stronger. If the mode or instructions are unclear, resolve that question before adapting a routine.
Exploring Red and Infrared Device Information?
If your interest is household sensing, the manufacturer's sensor or camera documentation is the relevant next step. There is no reason to turn that question into a beauty-device purchase.
For scalp care, the Red Light Therapy Hat is a relevant device-information branch. Read its model instructions and ask how the stated red and infrared channels operate. The link below is a route to product information, not a recommendation based on the remote-control or camera examples.
For a body-care belt, ask about light, heat and vibration separately. For a panel, ask which mode enables the documented infrared channel. Ask About Model Instructions with the product name, a photo of its model label and the particular statement you want clarified. A precise question makes it easier to obtain an answer you can actually use.
Frequently Asked Questions
Is infrared light the same as visible red light?
No. Infrared lies beyond visible red and includes several wavelength ranges. Red and infrared can be emitted together, but a red-looking device needs separate documentation before you can identify an infrared channel.
What does passive mean in a PIR sensor?
It means the sensing function receives radiation rather than supplying an infrared beam for detection. Panasonic PaPIRs respond to changes in incoming radiation. The associated system can then activate something else, such as a lamp or camera.
Does a thermal camera send treatment light towards a person?
Its thermal-imaging function receives radiation to make an image. That function is different from exposing a person with an LED device. Check other functions separately if a particular system also contains an emitter.
Why does infrared look orange or red in pictures?
Thermal-image colours are often selected display colours. They help present information within a chosen scale. Read the palette and temperature span; the same colour in different screenshots need not represent the same value.
Can a phone photograph verify an LED device's output?
No. A phone may reveal some invisible emission, but an ordinary photograph is not a calibrated wavelength or power measurement. Camera sensitivity and settings affect the image. Use appropriate measurement documentation for the exact device.
Does warmth show that near-infrared is switched on?
No. Warmth does not identify an emitted wavelength. A product may have a separate heating function or become warm for other reasons. Use its documented mode information, rather than sensation, to identify the active channel.
Does a nominal 850 nm specification tell me whether a device will work for my goal?
No. It describes a listed wavelength. Your goal also needs suitable evidence about the device, exposure and measured outcome. A communications emitter or detector example cannot answer a scalp-care or skincare effectiveness question.
