A red light therapy panel's dimensions describe the device, not a guaranteed treatment area. Usable coverage depends on its active emitter layout, your distance and position, the selected mode and how output is measured across the target surface. Start with the area you want to include, then look for a coverage map at the manufacturer's instructed working distance.

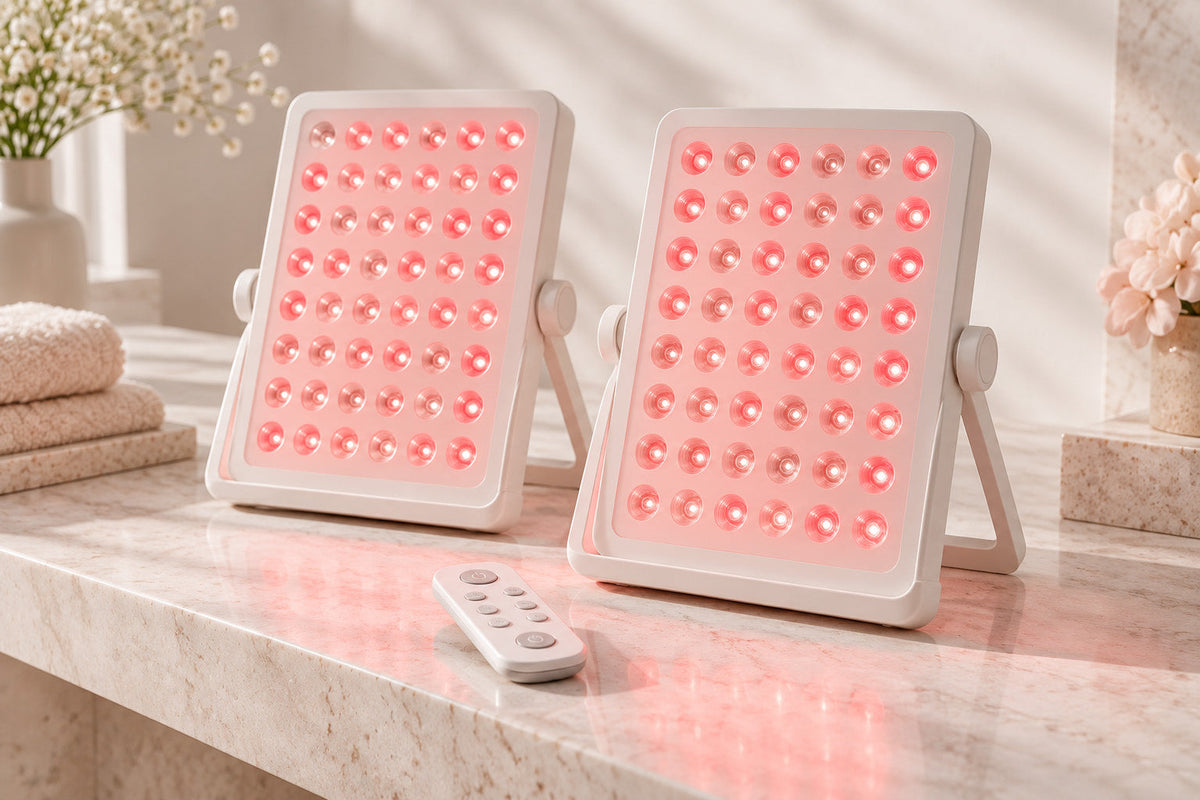

This distinction matters when comparing a compact tabletop panel with a taller panel. A larger housing may contain more emitters or cover a larger region, but its outer measurements alone cannot establish uniform exposure. A small panel may suit a defined facial setup without being suitable for the broader area shown in a marketing photograph.
Three different sizes belong in the comparison
The enclosure is the full body of the panel, including its frame. The active array is the region containing the light emitters. The illuminated area is the light distribution at a chosen surface and distance. These measurements answer different questions.
Enclosure dimensions help you plan shelf space and storage. Array dimensions describe the arrangement inside the frame. A measured light map helps explain what reaches the treatment position. None of these should silently substitute for another in a specification table.
For example, a product photograph may show a broad red glow on a wall. The visible edge of that glow is not necessarily the edge of a defined, useful exposure range. Light can be visible well beyond a region that meets the manufacturer's stated output conditions. A lifestyle image therefore needs supporting measurements before it can establish coverage.
The panel buying guide covers broader panel selection. Size becomes more informative once you connect it to an actual position and target area.
Start with the target, not the tallest device
Decide whether you are comparing devices for a defined facial position, the front of the neck or another manufacturer-approved area. Do not begin with full-body coverage if your intended use is a tabletop facial routine. A larger product can require more space, support and handling than your routine needs.
Think about the target's shape as well as its height and width. A face is curved rather than a flat test surface. Its centre, cheeks and sides do not all sit at the same distance or angle from a flat panel. The neck introduces another shape and position beneath the face.
Ask what the manufacturer's coverage claim actually describes: a flat measurement plane, a body region or a photograph of an example setup. If the claim is a rectangle at a particular distance, that is a useful starting point. It is still not proof that every point on a curved body surface receives the same exposure.
Distance changes more than the size of the light patch
Moving away from a panel can change the overlap of light from its emitters and the distribution across the target. It also changes the output reaching that position. A broader illuminated area is not automatically an equivalent treatment spread across more skin.
Avoid calculating your own universal distance correction from a simple inverse-square rule. That rule describes an idealised point source under particular conditions. A finite LED array, its optics and its nearby working positions are more complicated. Use measurements for the actual panel and distance rather than treating a household calculation as a verified exposure map.
Do not step back to include more area and then extend the session to compensate unless the instructions explicitly describe that setup. You would be changing both distance and time. Without appropriate measurements, the resulting exposure is uncertain.
An instructed distance also includes practical considerations such as positioning and eye protection. Choose a stand and location that can maintain it comfortably. Holding a ruler for the first session is not enough if the panel or chair shifts during ordinary use.
What a useful coverage map should tell you
Ask for measurements at several points across the claimed area, with the distance and mode stated. A single reading directly in front of the centre can be accurate for that point while leaving the edges unexplained. An average can also hide variation if the individual measurements are omitted.
Look for the units and measurement method. Irradiance is often expressed in milliwatts per square centimetre. It describes optical power per area at the measurement position; it is not the same as electrical power consumed by the device. A listed wattage on the power adapter cannot replace an irradiance map.
The Jenkins and Carroll reporting paper explains why wavelength, power, irradiation time and beam area at the treatment surface matter. Its distinction between beam area and aperture size is particularly relevant when enclosure dimensions are presented as treatment coverage.
Ask whether a reported maximum is a peak measurement or a value maintained throughout the claimed region. Also check whether the reading applies to red light alone, near-infrared alone or a combined mode. A number without these conditions is difficult to compare fairly with another panel.
Read dimensions with a practical example
Imagine a hypothetical panel whose enclosure measures twenty centimetres by fifteen centimetres. Its housing occupies a rectangle of three hundred square centimetres when viewed from the front. That calculation describes the outside footprint only. It does not establish the size of its active array or its usable treatment area.
Now imagine that the seller provides a map measured at the instructed distance. The map might show a central region and lower readings nearer the edges. This information would help you position a target region more thoughtfully than the enclosure measurement alone, even though it still would not establish a clinical result.
For a real specification example, the saved VanqHeal three-colour panel listing gives enclosure dimensions of 190 × 130 × 21.7mm. Those are useful for planning the space the device needs. They should not be rewritten as a verified rectangle of skin receiving uniform light.
Keep the hypothetical calculation separate from actual product measurements. A simple area calculation is useful for understanding the difference between footprint and coverage; it is not a dosing method.
LED count does not fill the missing measurements
More emitters may contribute to a larger array, but LED count alone does not reveal their individual output, spacing or optical arrangement. Some listings count individual chips, while others describe clusters or modules. Ask what is being counted before comparing two totals.
A higher count across a much larger panel may simply reflect its size. Conversely, a smaller array may concentrate emitters into a narrower region. Neither observation identifies a better treatment without comparable output and protocol information.
Visible brightness also has limits. Your eyes respond differently to wavelengths, and near-infrared is outside ordinary visible perception. A panel's red appearance in a photograph depends partly on camera exposure. Do not use that photograph to estimate the strength or width of its near-infrared delivery.
Physical setup can make nominal coverage unusable
Before purchase, check how the panel stands, mounts or hangs. Its weight, support arrangement and cable route affect whether you can maintain the intended position. A tall panel that cannot be placed securely in your available space may be less practical than a compact device with a well-defined setup.
Check the required ventilation and clearance in the instructions. Do not hide a panel inside a cupboard, drape fabric over it or balance it against fragile objects simply to achieve a preferred angle. The support system needs to be appropriate for that exact device.
Include the user in the space plan. You need room for the chair or body position as well as the panel itself. If the setup requires leaning forward or holding an awkward posture, assess whether it is comfortable enough to repeat under the instructions.
Compare panels using the same questions
| Detail | What it helps establish | What it does not establish alone |
|---|---|---|
| Enclosure dimensions | Storage and mounting footprint | Uniform treatment coverage |
| Active array dimensions | Emitter region and layout | Delivered output at every point |
| LED count | A construction detail | Equivalent exposure or results |
| Output map at a stated distance | Light distribution under defined conditions | Clinical effectiveness for every goal |
| Instructed positioning | How to use the model as intended | Permission to improvise other distances |
Keep unknown fields visible in your comparison rather than replacing them with assumptions. A smaller panel with understandable measurements may be easier to assess than a larger panel advertised with an undefined full-coverage claim.
Choose a panel that accommodates your intended area within its documented setup. Physical size matters for space and handling; usable coverage requires the additional light-distribution information.
Frequently Asked Questions
Does a bigger red light panel always cover more usable skin area?
Not automatically. A larger enclosure can contain a larger array, but usable coverage needs measurements at the intended distance and mode. Ask what the claimed area represents and how output varies across it.
Can I calculate treatment coverage from width and height?
Multiplying enclosure width by height gives a physical footprint, not a treatment map. The active array and light distribution may differ. Keep that calculation for space planning unless the manufacturer supplies separate measured coverage information.
Does moving farther away give the same treatment over a larger area?
Distance changes distribution and delivered output. A larger visible light patch does not guarantee equivalent exposure. Use the manufacturer's instructed positions and avoid extending time to compensate for an improvised distance.
Why is a centre irradiance reading insufficient?
It describes one point under particular conditions. The edges and other points can differ. A coverage comparison is more informative when it includes multiple measurements, distance, mode, units and an explanation of the measurement method.
Is more LED count a better size comparison?
It is only one construction detail. Output, spacing, optics and the way emitters are counted also matter. A higher total cannot establish a more uniform treatment or a better result without comparable measurements and evidence.
Can a tabletop panel treat the whole face at once?
Check the exact device's intended area and setup. A face is curved, so a flat measurement rectangle does not establish equal exposure everywhere. Do not infer full facial coverage from a red glow in a product photograph.
What should I request before buying a larger panel?
Ask for its enclosure and array dimensions, support instructions, working distance and output map for the intended mode. Check that your room can accommodate both the device and the user's position comfortably and securely.
